MAGNETIC DRUM SEPARATOR

INTRODUCTION

STAR TRACE Drum Separation are primarily designed and manufactured as low field intensity separators. They have an open magnetic system with the magnetic poles located in one plain. Low field intensity separators are employed for separating iron particles from bulk material whenever foreign iron disturbs the subsequent process sequences. It is also used for removing or enriching strongly magnet content of dry minerals.

Working of Permanent Magnetic Drum Separator:

After the ore slurry tank into the tank after the water pipe water to the mine under the influence of mineral particles into the tank was loose state of a mine. The role of the magnetic field, magnetic mineral particles to the magnetic pole movement magnetic agglomeration occurs, and be attracted to the cylinder. The polarity of the magnetic poles along the alternating direction of cylinder rotation, and at work be fixed, due to alternating magnetic pole magnetic stirring produced the phenomenon of non-magnetic minerals in the turning off, and eventually the suction surface of the cylinder is a concentrate. Concentrate along the edge of magnetic cylinder to the weakest at the magnetic system, mineral water spray in the unloading effect of flushing water was discharged into the concentrate tank, if it is full magnetic magnetic roller, brush roll unloading ore is carried out with . Non-magnetic or weakly magnetic minerals are left with the pulp slurry in the discharge groove, that is tailings.

Permanent Magnetic Drum Separator Structure:

Permanent Magnetic Drum Separator mainly by the cylinder, roller, brush roller, magnetic system, tank, transmission parts 6 parts. Cylinder by a 2-3mm stainless steel plate welded into the tube, end caps for the aluminum casting or workpiece, connected with stainless steel screws and barrel. Motor or directly through the reducer Promise speed motor, drive cylinder, magnetic roller and the brush roll for rotational movement. Magnetic system is an open magnetic system, mounted on the cylinder and exposed full magnetic. Magnets with stainless steel bolts installed in the magnetic yoke of the floor, out of cylinder yoke shaft, the shaft has Shui arm fixed. Pulled the magnetic system can be adjusted Shui arm angle adjustment lever can be fixed after appropriate. Tank work area with stainless steel plate, frame and other parts of the tank with ordinary steel welding.

Magnet Drum Separation Principle:

Drum Separation are primarily designed and manufactured as low field intensity separators. They have an open magnetic system with the magnetic poles located in one plain. Low field intensity separators are employed for separating iron particles from bulk material whenever foreign iron disturbs the subsequent process sequences. It is also used for removing or enriching strongly magnetic content of dry minerals.

The most widely used application of drum separation is by deflection separation in which the bulk material is fed onto the top of the drum. This must be spread evenly over the entire width in order to ensure optimum utilisation of the drum. The use of a vibratory feeder is appropriate for feeding the material tangentially onto the drum. This operating procedure ensures minimum wear to the outer drum and guarantees constant-speed application. At normal feed speed of 0.2-0.3 m/sec. using vibratory feeders, the material is spread and distributed quickly over the drum, which rotates at a speed of 0.6-0.8 m/sec. The material is reduced to 1/3 - 1/4 of the feed layer height.

On permanent drum separators rectangular magnetic blocks generally made of sintered hard ferites are radially magnetized and mounted on a soft iron plate. The magnetic drum is connected to a rigidly fixed shaft, the position of which is adjustable. The outer drum made of high-grade steel or manganese steel rotates around the axis supported on roller bearings.

Magnet Drum Separation Construction:
  • Highest grades of magnetic material including Neodymium-Iron-Boron (rare earth), Samarium-Cobalt (rare earth), Ceramic and Alnico.
  • Dust tight 304 stainless steel housing construction.
  • 1/4" x 2" x 2" angle iron inlet and outlet flanges.
  • Access door for inspection and maintenance.
  • Adjustable feed gate to meter product flow.
  • Adjustable magnet positioning for optimum separation.
  • Continuous cleaning discharges ferrous contaminants separation from product flow.
  • Inlet has a fixed diverter to direct product flow over magnet.
  • Outlet has splitter for ferrous and non-ferrous product discharge.

APPLICATIONS OF MAGNETIC DRUM SEPARATOR

The permanent-magnetic roller separators are used in mines and coal separating factories to separate the wet fine highly magnetic substances or remove the highly magnetic substances from the non-magnetic materials.

  • Most economical automatic iron removing equipment for large volume for dry powders, granules & crushed materials.
  • Suitable for any dry material.
  • Remove fine iron particles and iron oxides from mixed materials.
  • Silica, Sand, minerals, etc.
  • Glass, pharmaceuticals, cement, metal recovery and plastic industries.

The permanent-magnetic roller separators are used in mines and coal separating factories to separate the wet fine highly magnetic substances or remove the highly magnetic substances from the non-magnetic materials.

The separators have three types of tanks:

1. Half Counter current Tank (CTB)
2. Direct Flow Tank (CTS)
3. Counter current Tank (CTN)
which are used according to different granular and technological requirements.

The features of our products are: optimized computer design, rational magnetic circuit, strong magnetic coercive force and high-remanence permanent magnet which can keep the magnet performance in a long period and safe guard the long-term interest of the customers, which makes the whole structure is reliable.

FEATURES OF MAGNETIC DRUM SEPARATOR

The following are the features of Magnetic drum separator:

  • Low maintenance & High volume throughputs.
  • Minimal spare parts required & Robust design.
  • Drum housing can be designed to suit space limitations.
  • Wide range of Drum diameters and widths available.
  • Available in Single / double and triple drum complete unit.
  • Different magnet configurations available suited to individual needs.
  • Enhanced separation compared to equipment such as Magnetic Pulleys.
  • Magnet Drum is supplied with fixing blocks and Shaft for adjustment.
  • Powerful magnetic zone approximately of 135 Deg fixed inside rotating SS Drum.
  • Complete Drum Separator machine is supplied with hopper, vibrating feeding tray and gear/motor assembly.
  • Electro Magnetic drums are made using Aluminium or Copper conductors.
  • Made with Strontium ferrite magnets & Automatic self cleaning mechanism.
  • Material is fed from hopper/tray on drum, tramp iron is held on drum and non magnetic material falls, iron is taken away held by magnet and then falls when away from magnet zone.

TYPES OF MAGNETIC DRUM SEPARATOR

Closed Type Drum Separator Configuration:

The totally enclosed type drum comes complete with a chute type feeder, hopper, adjustable feed regulation gate, magnetic drum and geared motor drive in a ready for use condition. Inlet and Outlet openings are flanged for ease of connection to customers duck work. Double or Triple totally enclosed machines can also be supplied if required by clients.

Wet Drum Separator:

STAR TRACE's Wet Permanent Magnetic Separators are offered in size of dia 1200mm(48') and 916mm(36'W) ion lengths of upto 3000mm(10'). Three basic separator designs are available for copping, roughing and finishing/cleaning applications. Each type can be supplied in single drum or multiple drum stages of taconite or magnetic and also for recovery for magnetic medium in dense media plants. The stationery magnet yoke is an assembly of Rare Earth Neodymium Permanent Magnets. The rotating drum is available with optional rubber or stainless covers. The magnetic flux pattern will match the tank configuration for optimum performance.

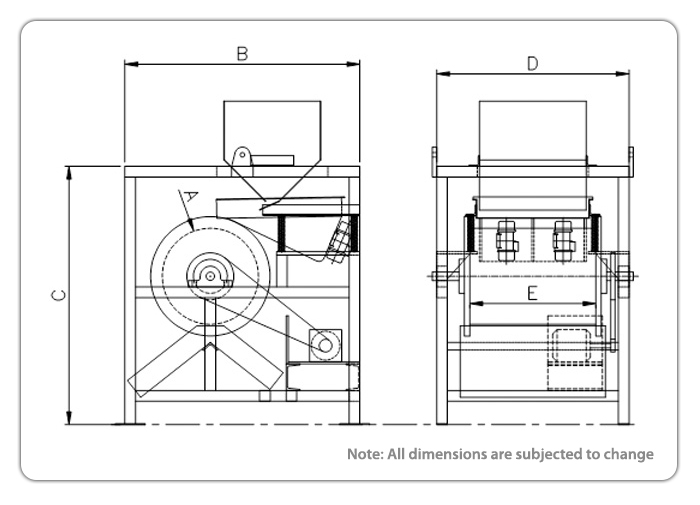

Specification Of Magnetic Drum Separator

Magnetic Drum Separator Specification
Technical Specification
Drum Diameter
"A" in mm		 Drum Width
"B" in mm		 C D E
300 200 950 1060 500
300 950 1060 600
350 950 1060 650
400 950 1060 700
450 950 1060 750
500 950 1060 800
600 950 1060 900
750 950 1060 1050
900 950 1060 1200
1050 950 1060 1350
1200 950 1060 1500
375 300 1025 1135 600
350 1025 1135 650
400 1025 1135 700
450 1025 1135 750
500 1025 1135 800
600 1025 1135 900
750 1025 1135 1050
900 1025 1135 1200
1050 1025 1135 1350
1200 1025 1135 1500
450 300 1100 1210 600
350 1100 1210 650
400 1100 1210 700
450 1100 1210 750
500 1100 1210 800
600 1100 1210 900
750 1100 1210 1050
900 1100 1210 1200
1050 1100 1210 1350
1200 1100 1210 1500
600 450 1250 1360 750
500 1250 1360 800
600 1250 1360 900
750 1250 1360 1050
900 1250 1360 1200
1050 1250 1360 1350
1200 1250 1360 1500
